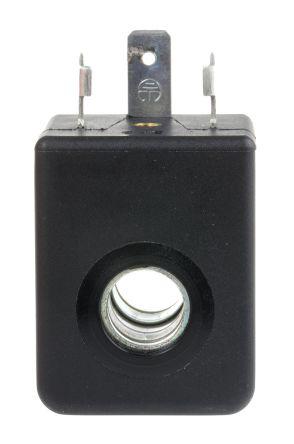

Asco Solenoid Valve E262K184S1N01-24VCC, 2 port , NC, 24 V dc, 1/4in

Description

Minimum Operating Temperature: -25°C

Flow Factor Kv: 0.3m³/h

Operating Temperature Range: -25 → +80 °C

Maximum Working Pressure: 6.5 (Oil) bar, 7 (Water) bar, 7.5 (Air) bar

Series: E262K

Connection Size: 1/4in

Connection: 1/4 in G Female

Suitable Applications: Air, Oil, Water

Orifice Diameter: 3.2mm

Number of Ports: 2

Body Material: Stainless Steel

Thread Standard or Connection Type: G

Supply Voltage: 24 V dc Connection Gender: Female Default Valve Position: NC Operation: Direct Maximum Operating Temperature: +80°C Type: 2/2 Maximum Opening Time: 25ms

This is Solenoid Valve E262K184S1N01-24VCC 2 port NC 24 V dc 1/4in manufactured by Asco. The manufacturer part number is E262K184S1N01H1. Whereas, the minimum operating temperature of the product is -25°c. Its flow factor Kv is 0.3m³/h . The product has -25 → +80 °c of operating temperature range. It provides up to 6.5 (oil) bar, 7 (water) bar, 7.5 (air) bar maximum working pressure. The product e262k, is a highly preferred choice for users. It has a standard 1/4in size connection . It has a standard 1/4 in g female connection . Furthermore, it is suitable for air, oil, water applications . It bears 3.2mm of orifice diameter. This product features 2 number of ports. The product’s body is nicely designed from stainless steel materials. It has a/an g thread standard or connection type . Features 24 v dc supply voltage. The connector comes in female. The default valve position is nc . It allows to operate using direct. It has a maximum operating temperature of +80°c. It comes in 2/2 configuration. It has a maximum 25ms opening time .
